Capacity is not the hole size, however is directly related to the hole size.

Capacity refers to the outside dimensions of the collet.



Capacity = Maximum hole size.

For example, a 3/8 capacity collet is availble in many different hole sizes, up to 3/8".



Refer to the table below to find the proper capactiy of your collet

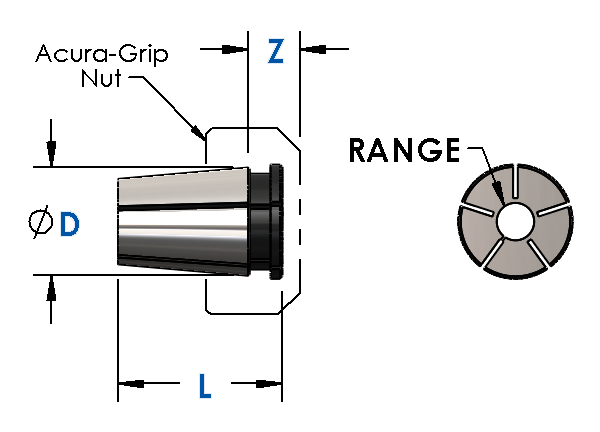

AG DZL

CAPACITY RANGE D Z L
3/8 1/16 - 3/8 0.562 0.31 0.83
1/2 3/16 - 1/2 0.720 0.39 1.09
3/4 1/4 - 3/4 1.131 0.54 1.75
1" 3/8 - 1" 1.446 0.69 2.19
1-3/8 5/8 - 1-3/8 1.909 0.72 2.69
1-5/8 3/4 - 1-5/8 2.125 0.76 2.69
