Capacity is not the hole size, however is directly related to the hole size.

Capacity refers to the outside dimensions of the collet.



Capacity = Maximum hole size.

For example, a 3/8 capacity collet is availble in many different hole sizes, up to 3/8".



Refer to the table below to find the proper capactiy of your collet

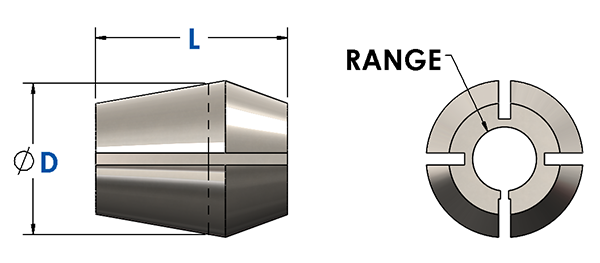

DT DL



CAPACITY RANGE TYPE D L
1/4 1/16 - 1/4 OW .39 .50
3/8 1/8 - 3/8 WW .59 .75
1/2 1/8 - 1/2 Y .80 1.06
3/4 1/4 - 3/4 Z 1.12 1.50
1" 3/8 - 1" ZZ 1.56 2.00
1-1/2 3/4 - 1-1/2 XZ 2.20 2.50
