Microbore Cartridge Data

DeVlieg Microbore Boring products are not on the Webstore, for complete product offerings for both DeVlieg Microbore & Universal Engineering products, please refer to our on-line catalog . For items not on the webstore, please call us on our toll free number, or email us at sales@universaldevlieg.com.

SIZE	LENGTH	A	B	C	D	E	F	G	H	J
3	A	5/16-40	.719	.531	.272	.172	.057	8-32	.366	.091
3	B	5/16-40	.562	.375	.272	.172	.057	8-32	.366	.091
5	A	1/2-40	1.125	.312	.457	.25	.072	1/4-20	.586	.123
5	B	1/2-40	.875	.625	.457	.25	.072	1/4-20	.586	.123
7	A	3/4-20	1.469	1.000	.670	.344	.088	3/8-16	.885	.186
7	B	3/4-20	1.219	.750	.670	.344	.088	3/8-16	.885	.186
10	A	1"-20	2.094	1.625	.922	.375	.135	1/2-13	1.165	.247
10	B	1"-20	1.594	1.125	.922	.375	.135	1/2-13	1.165	.247

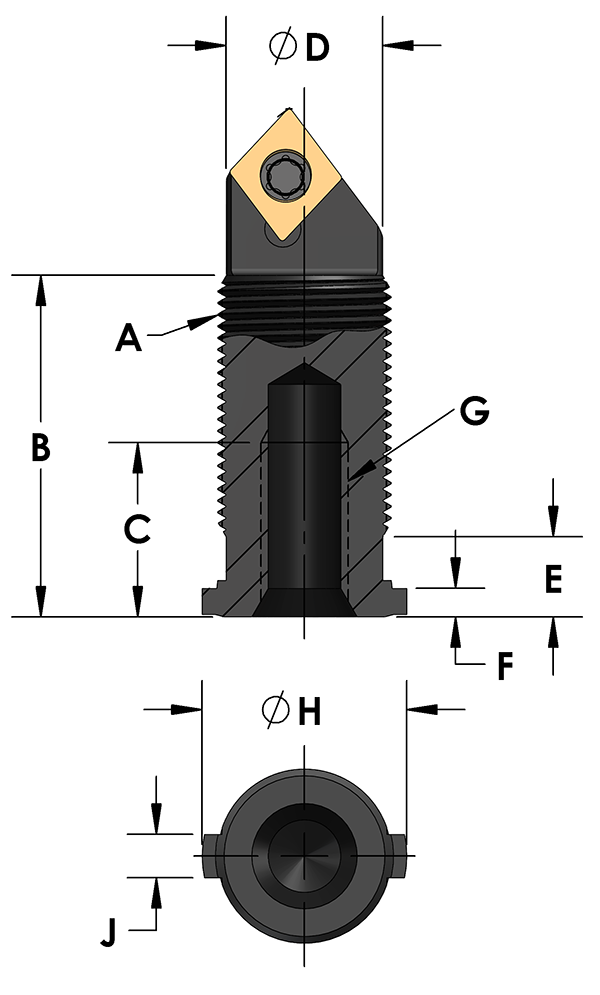

CARTRIDGE DATA ARTICLE
