Acura-Flex Collet Capacity

DeVlieg Microbore Boring products are not on the Webstore, for complete product offerings for both DeVlieg Microbore & Universal Engineering products, please refer to our on-line catalog . For items not on the webstore, please call us on our toll free number, or email us at sales@universaldevlieg.com.

Capacity is not the hole size, however is directly related to the hole size.

Capacity refers to the outside dimensions of the collet.

Capacity = Maximum hole size.

For example, a 3/8 capacity collet is available in many different hole sizes, up to 3/8".

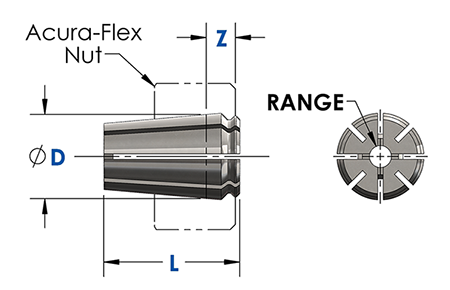

Refer to the table below to find the proper capacity of your collet AF DLZ IV

CAPACITY	RANGE	D	Z	L
1/4	1/32 - 1/4 (AF00 - AF14)	0.438	0.25	1.00
3/8	1/16 - 3/8 (AF21 - AF44)	0.562	0.25	1.03
1/2	7/64 - 1/2 (AF55 - AF82)	0.720	0.25	1.16
3/4	7/64 - 3/4 (AF95 - AF140)	1.131	0.63	2.02
1"	7/32 - 1" (AF162 - AF213)	1.446	0.74	2.50
1-3/8	11/32 - 1-3/8 (AF241 - AF286)	1.909	0.91	3.11
1-5/8	19/32 - 1-5/8 (AF331 - AF377)	2.125	0.90	3.13

Acura-Flex Capacity
