The Capacity of Acura-Tap Collets is determined by the Tap Range of the collet

Refer to the table below to find the proper Tap Range of your collet

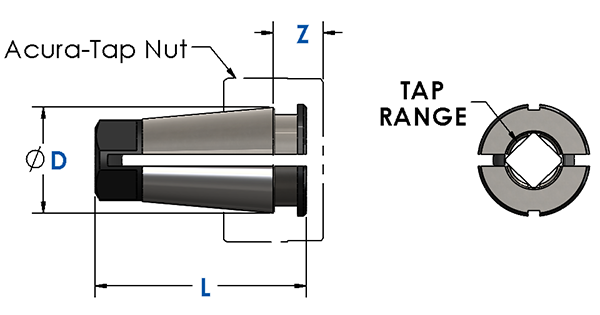

AT DLZ blu

TAP RANGE	D	Z	L
#0 - 1/2 HAND, 1/8 PIPE SS	0.720	0.39	1.56
1/4 - 7/8 HAND, 1/8 - 1/2 PIPE	1.131	0.54	2.25
3/4 - 1 1/2 HAND, 1/2 - 1 1/4 PIPE	1.909	0.72	3.31
