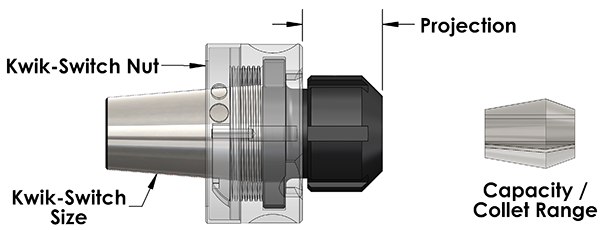

Step 1: Under the Kwik-Switch tab, select the proper Kwik-Switch Size (There are two ways to narrow results)
By determining Adapter Size (Recommended) show Kwik-Switch Adapter Dimensions
-or-
by determining the Holder Size, (Use if you do not have an existing Adapter) show Kwik-Switch Nut Dimensions
Step 2: Under the Nose End tab, select the proper size (There are 3 ways to narrow results)
By Capacity - Use only if you already know your collets capacity show Double Taper Capacity table
-or-
By Collet Range (Hole Size) - Good when starting from scratch and you don't already have a supply of collets in a particular capacity
-or-
By Collet Range (Part #) - Useful when you know the Universal Engineering collet part numbers
Step 3: Under the Length tab, choose an available Projection
